E1FW | Ex eb, Ex db, Ex nR, Ex ta, Explosive Atmosphere Cable Gland
For all types of Steel & Aluminium Wire Armoured Cables
英国CMP不锈钢铠装防爆格兰（TE1FU系列）
CMP cable gland（TE1FU series）
EPIN AUTOMATION Hotline：4008552521

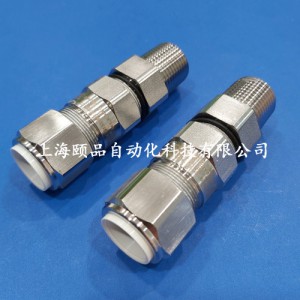

CMP不锈钢铠装防爆格兰（TE1FU-CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
TE1FU | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured Cables
Globally Approved, Explosive Atmosphere Cable Gland
• Stainless steel compact design
• Fully sequential, three step installation procedure
• Reduces installation times, cost & risk
• Direct & remote installation
• Unique compensating displacement seal system(CDS)
• metal-to-metal installation regardless of cable bedding diameter
• Designed to prevent Coldflow, see CMP Technical document TS002 (available upon request)
• Integral protected deluge seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• -60°C to +130°C
• Globally marked, IECEx, ATEX & cCSAus
• Superior EMC performance
• Patents granted: GB 1077517
CERTIFICATES
PRODUCT SELECTION TABLETA:IMAGE="" XMLNS="＇HTTP://WWW.W3.ORG/2000/SVG＇" WIDTH="＇200＇" HEIGHT="＇200＇" VIEWBOX="＇0" FILL="＇%232A80EB＇" D="＇M145.659" CENTER="" RIGHT:="" :="" STYLE="PADDING: 0PX; MARGIN: 0PX; BOX-SIZING: INHERIT; POSITION: ABSOLUTE; WIDTH: 20PX; HEIGHT: 20PX; BACKGROUND-IMAGE: URL(""); BACKGROUND-POSITION: INITIAL; BACKGROUND-SIZE: INITIAL; BACKGROUND-REPEAT: INITIAL; BACKGROUND-ATTACHMENT: INITIAL; BACKGROUND-ORIGIN: INITIAL; BACKGROUND-CLIP: INITIAL; DISPLAY: INLINE !IMPORTANT;">
| Cable Gland Size |
Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) |
Cable
Bedding
Diameter
＇A＇ |
Overall
Cable
Diameter
＇B＇ |
Armour Range |
Across
Flats
＇D＇ |
Across
Corners
＇D＇ |
Protrusion
Length ＇F＇ |
Combined Ordering Reference
(Stainless Steel Metric) |
Shroud |
Cable
Gland
Weight
(Kgs) |
| Standard |
Option |
Grooved Cone (X) |
Stepped Cone (W) |
| Metric |
Thread Length (Metric) ＇E＇ |
NPT |
Thread Length
(NPT) ＇E＇ |
NPT |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Max |
Size |
Type |
Ordering
Suffix |
| 20S16 |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
3.1 |
8.6 |
6.1 |
13.1 |
0.3 |
1.0 |
0.8 |
1.25 |
24.0 |
26.4 |
57.3 |
20S16 |
TE1FU |
1RA4 |
PVC04 |
0.15 |
| 20S |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
6.1 |
11.6 |
9.5 |
15.9 |
0.3 |
1.0 |
0.8 |
1.25 |
24.0 |
26.4 |
57.3 |
20S |
TE1FU |
1RA4 |
PVC04 |
0.15 |
| 20 |
M20 |
15.0 |
½＇ |
19.9 |
¾" |
6.5 |
13.9 |
12.5 |
20.9 |
0.4 |
1.0 |
0.8 |
1.25 |
30.5 |
33.6 |
61.2 |
20 |
TE1FU |
1RA4 |
PVC06 |
0.23 |
| 25S |
M25 |
15.0 |
¾＇ |
20.2 |
1" |
11.1 |
19.9 |
14.0 |
22.0 |
0.4 |
1.2 |
1.25 |
1.6 |
37.5 |
41.3 |
74.0 |
25S |
TE1FU |
1RA4 |
PVC09 |
0.34 |
| 25 |
M25 |
15.0 |
¾＇ |
20.2 |
1" |
11.1 |
19.9 |
18.2 |
26.2 |
0.4 |
1.2 |
1.25 |
1.6 |
37.5 |
41.3 |
74.0 |
25 |
TE1FU |
1RA4 |
PVC09 |
0.34 |
| 32 |
M32 |
15.0 |
1＇ |
25.0 |
1 ¼" |
17.0 |
26.2 |
23.7 |
33.9 |
0.4 |
1.2 |
1.6 |
2.0 |
46.0 |
50.6 |
78.2 |
32 |
TE1FU |
1RA4 |
PVC11 |
0.55 |
| 40 |
M40 |
15.0 |
1 ¼＇ |
25.6 |
1 ½" |
22.0 |
32.1 |
27.9 |
40.4 |
0.4 |
1.6 |
1.6 |
2.0 |
55.0 |
60.5 |
81.6 |
40 |
TE1FU |
1RA4 |
PVC15 |
0.79 |
| 50S |
M50 |
15.0 |
1 ½＇ |
26.1 |
2" |
29.5 |
38.1 |
35.2 |
46.7 |
0.4 |
1.6 |
2.0 |
2.5 |
60.0 |
66.0 |
88.1 |
50S |
TE1FU |
1RA4 |
PVC18 |
1.00 |
| 50 |
M50 |
15.0 |
2＇ |
26.9 |
2 ½" |
35.6 |
44.0 |
40.4 |
53.0 |
0.6 |
1.6 |
2.0 |
2.5 |
70.1 |
77.1 |
91.2 |
50 |
TE1FU |
1RA4 |
PVC21 |
1.37 |
| 63S |
M63 |
15.0 |
2＇ |
26.9 |
2 ½" |
40.1 |
49.9 |
45.6 |
59.4 |
0.6 |
1.6 |
2.0 |
2.5 |
75.0 |
82.4 |
90.5 |
63S |
TE1FU |
1RA4 |
PVC23 |
1.50 |
| 63 |
M63 |
15.0 |
2 ½＇ |
39.9 |
3" |
47.2 |
55.9 |
54.6 |
65.8 |
0.6 |
1.6 |
2.0 |
2.5 |
80.0 |
88.0 |
90.3 |
63 |
TE1FU |
1RA4 |
PVC25 |
1.56 |
| 75S |
M75 |
15.0 |
2 ½＇ |
39.9 |
3" |
52.8 |
61.9 |
59.0 |
72.0 |
0.6 |
1.6 |
2.0 |
2.5 |
90.0 |
99.0 |
104.7 |
75S |
TE1FU |
1RA4 |
PVC28 |
2.45 |
| 75 |
M75 |
15.0 |
3＇ |
41.5 |
3 ½" |
59.1 |
67.9 |
66.7 |
78.4 |
0.6 |
1.6 |
2.5 |
3.0 |
100.0 |
110.0 |
110.8 |
75 |
TE1FU |
1RA4 |
PVC30 |
3.15 |
| 90 |
M90 |
24.0 |
3 ½＇ |
42.8 |
4" |
66.6 |
78.6 |
76.2 |
90.3 |
0.8 |
1.6 |
3.15 |
4.0 |
115.0 |
126.5 |
135.5 |
90 |
TE1FU |
1RA4 |
PVC32 |
4.62 |
| 100 |
M100 |
24.0 |
3 ½＇ |
42.8 |
4" |
76.0 |
90.9 |
86.1 |
101.4 |
0.8 |
1.6 |
3.15 |
4.0 |
127.0 |
139.7 |
126.8 |
100 |
TE1FU |
1RA4 |
LSF33 |
4.95 |
| 115 |
M115 |
24.0 |
4" |
44.0 |
5" |
86.0 |
97.9 |
101.5 |
110.2 |
0.8 |
1.6 |
3.15 |
4.0 |
138.0 |
151.8 |
157.5 |
115 |
TE1FU |
1RA4 |
LSF34 |
7.60 |
| 130 |
M130 |
24.0 |
5" |
46.8 |
- |
97.0 |
114.9 |
110.2 |
123.2 |
0.8 |
1.6 |
3.15 |
4.0 |
157.0 |
172.7 |
164.5 |
130 |
TE1FU |
1RA4 |
LSF35 |
8.73 |
| Dimensions displayed in millimeters unless otherwise stated |
