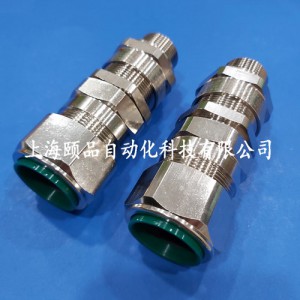

英国CMP铠装防爆格兰（E1FU系列） CMP E1FU Cable gland
上海颐品自动化-CMP防爆格兰（CMP Cable Gland）
Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II
CMP防爆格兰代理商：上海颐品自动化科技有限公司
关键词：CMP防爆格兰，CMP防爆变径，CMP防爆堵头，CMP防爆呼吸阀
CMP防爆格兰等产品规格书及相关证书-请咨询上海颐品自动化科技有限公司
E1FU | Ex eb, Ex db, Ex nR, Ex ta | Explosive Atmosphere Cable Gland
For all types of Armoured cables
Globally Approved, Explosive Atmosphere Cable Gland
• metal-to-metal armour clamping
• Direct & remote installation
• Displacement type flameproof inner seal
• Controlled outer ‘load retention’ seal
• Unique OSTG prevents overtightening
• Designed to prevent Coldflow, see CMP Technical document TS001 (available upon request)
• -60°C to +130°C
• Globally marked, IECEx, ATEX & cCSAus
• Superior EMC performance
Note: † Grooved Cone (X) is predominantly used for Wire Braid (e.g. GSWB, TCWB), Steel Tape Armour (STA, DSTA) ａnd Aluminium Strip Armour (ASA) but is also suitable for Single Wire Armour (SWA), Aluminium Wire Armour (AWA) ａnd Pliable Wire Armour (PWA) if the range is outside that of the Stepped Cone (W). Note: Grooved Cone (X) dimensions shown in the Cable Gland Selection Table below are for a double wire strand of braid armour cables. Tapes can also be doubled over. For cables that have only a single layer of armour such as SWA the clamping range should be used as shown in the table below. Stepped (W) Cone is suitable for Single Wire Armour (SWA), or Aluminium Wire Armour (AWA) cables. For under / oversized armour wires click here
CERTIFICATES
PRODUCT SELECTION TABLE
| Cable Gland Size |
Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available) |
Cable
Bedding
Diameter
＇A＇ |
Overall
Cable
Diameter
＇B＇ |
Armour Range |
Across
Flats
＇D＇ |
Across
Corners
＇D＇ |
Protrusion
Length ＇F＇ |
Combined Ordering Reference
(*Brass Metric) |
Shroud |
Cable
Gland
Weight
(Kgs) |
| Standard |
Option |
Grooved
Cone (X) |
Stepped Cone (W) |
| Metric |
Thread Length (Metric) ＇E＇ |
NPT |
Thread Length
(NPT) ＇E＇ |
NPT |
Min |
Max |
Min |
Max |
Min |
Max |
Min |
Max |
Max |
Max |
Size |
Type |
Ordering
Suffix |
| 20S16 |
M20 |
15.0 |
½" |
19.9 |
¾" |
3.1 |
8.6 |
6.1 |
13.1 |
0.3 |
1.0 |
0.8 |
1.25 |
24.0 |
26.4 |
72.5 |
20S16 |
E1FU |
1RA |
PVC04 |
0.16 |
| 20S |
M20 |
15.0 |
½" |
19.9 |
¾" |
6.1 |
11.6 |
9.5 |
15.9 |
0.3 |
1.0 |
0.8 |
1.25 |
24.0 |
26.4 |
70.0 |
20S |
E1FU |
1RA |
PVC04 |
0.15 |
| 20 |
M20 |
15.0 |
½" |
19.9 |
¾" |
6.5 |
13.9 |
12.5 |
20.9 |
0.4 |
1.0 |
0.8 |
1.25 |
30.5 |
33.6 |
73.0 |
20 |
E1FU |
1RA |
PVC06 |
0.21 |
| 25S |
M25 |
15.0 |
¾" |
20.2 |
1" |
11.1 |
19.9 |
14.0 |
22.0 |
0.4 |
1.2 |
1.25 |
1.6 |
37.5 |
41.3 |
89.0 |
25S |
E1FU |
1RA |
PVC09 |
0.33 |
| 25 |
M25 |
15.0 |
¾" |
20.2 |
1" |
11.1 |
19.9 |
18.2 |
26.2 |
0.4 |
1.2 |
1.25 |
1.6 |
37.5 |
41.3 |
89.0 |
25 |
E1FU |
1RA |
PVC09 |
0.33 |
| 32 |
M32 |
15.0 |
1" |
25.0 |
1 ¼" |
17.0 |
26.2 |
23.7 |
33.9 |
0.4 |
1.2 |
1.6 |
2.0 |
46.0 |
50.6 |
86.0 |
32 |
E1FU |
1RA |
PVC11 |
0.43 |
| 40 |
M40 |
15.0 |
1 ¼" |
25.6 |
1 ½" |
22.0 |
32.1 |
27.9 |
40.4 |
0.4 |
1.6 |
1.6 |
2.0 |
55.0 |
60.5 |
90.0 |
40 |
E1FU |
1RA |
PVC15 |
0.62 |
| 50S |
M50 |
15.0 |
1 ½" |
26.1 |
2" |
29.5 |
38.1 |
35.2 |
46.7 |
0.4 |
1.6 |
2.0 |
2.5 |
60.0 |
66.0 |
91.0 |
50S |
E1FU |
1RA |
PVC18 |
0.75 |
| 50 |
M50 |
15.0 |
2" |
26.9 |
2 ½" |
35.6 |
44.0 |
40.4 |
53.0 |
0.6 |
1.6 |
2.0 |
2.5 |
70.1 |
77.1 |
95.0 |
50 |
E1FU |
1RA |
PVC21 |
0.95 |
| 63S |
M63 |
15.0 |
2" |
26.9 |
2 ½" |
40.1 |
49.9 |
45.6 |
59.4 |
0.6 |
1.6 |
2.0 |
2.5 |
75.0 |
82.5 |
102.0 |
63S |
E1FU |
1RA |
PVC23 |
1.34 |
| 63 |
M63 |
15.0 |
2 ½" |
39.9 |
3" |
47.2 |
55.9 |
54.6 |
65.8 |
0.6 |
1.6 |
2.0 |
2.5 |
80.0 |
88.0 |
104.0 |
63 |
E1FU |
1RA |
PVC25 |
1.34 |
| 75S |
M75 |
15.0 |
2 ½" |
39.9 |
3" |
52.8 |
61.9 |
59.0 |
72.0 |
0.6 |
1.6 |
2.0 |
2.5 |
90.0 |
99.0 |
115.0 |
75S |
E1FU |
1RA |
PVC28 |
2.11 |
| 75 |
M75 |
15.0 |
3" |
41.5 |
3 ½" |
59.1 |
67.9 |
66.7 |
78.4 |
0.6 |
1.6 |
2.5 |
3.0 |
100.0 |
110.0 |
117.0 |
75 |
E1FU |
1RA |
PVC30 |
2.42 |
| 90 |
M90 |
24.0 |
3 ½" |
42.8 |
4" |
66.6 |
78.6 |
76.2 |
90.3 |
0.8 |
1.6 |
3.15 |
4.0 |
114.3 |
125.4 |
147.0 |
90 |
E1FU |
1RA |
PVC32 |
4.21 |
| 100 |
M100 |
24.0 |
3 ½" |
42.8 |
4" |
76.0 |
90.9 |
86.1 |
101.4 |
0.8 |
1.6 |
3.15 |
4.0 |
123.0 |
135.3 |
140.0 |
100 |
E1FU |
1RA |
LSF33 |
4.45 |
| 115 |
M115 |
24.0 |
4" |
44.0 |
5" |
86.0 |
97.9 |
101.5 |
110.2 |
0.8 |
1.6 |
3.15 |
4.0 |
133.4 |
146.7 |
162.0 |
115 |
E1FU |
1RA |
LSF34 |
6.19 |
| 130 |
M130 |
24.0 |
5" |
46.8 |
- |
97.0 |
114.9 |
110.2 |
123.2 |
0.8 |
1.6 |
3.15 |
4.0 |
152.4 |
167.6 |
174.0 |
130 |
E1FU |
1RA |
LSF35 |
8.34 |
| Dimensions displayed in millimeters unless otherwise stated |
TECHNICAL ILLUSTRATION
