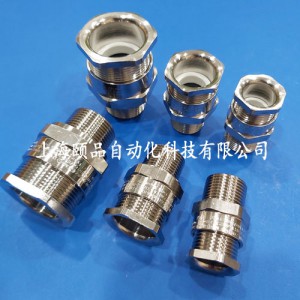

CMP防爆格蘭（A2F系列）CMP A2F Cable Gland

Hazardous Area Cable Glands-ATEX IECEX，Exe，Exd Group II

CMP防爆格蘭代理商：上海頤品自動化科技有限公司

關(guān)鍵詞：CMP防爆格蘭，CMP防爆變徑，CMP防爆堵頭，CMP防爆呼吸閥

CMP防爆格蘭等產(chǎn)品規(guī)格書及相關(guān)證書-請咨詢上海頤品自動化科技有限公司

A2F Cable Gland，explosive atmosphere single seal globally approved gland

Globally Approved, Explosive Atmosphere Cable Gland

• Displacement type flameproof seal

• Deluge protected

• -60°C to +130°C (standard), -20°C to 200°C (ThermEx option )

• Globally marked, IECEx, ATEX & CSA

• Class I Zone 1, Class I Division 2 BCD (Canada Only)

For all types of Unarmoured & Braid Armour Cables

Design Specification	BS 6121:Part 1:1989, IEC 62444, EN 62444
Mechanical Classifications*	Impact = Level 8, Retention = Class B
Enclosure Protection	IK10 to IEC 62262 (20 joules) Brass & Stainless Steel only
ATEX Certificate	SIRA13ATEX1068X, SIRA13ATEX4074X
Code of Protection	II 2G, II 1D Ex d IIC Gb, Ex e IIC Gb, Ex ta IIIC Da II 3G Ex nR IIC Gc I M2 Ex d I Mb, Ex e I Mb
Compliance Standards	EN 60079-0,1,7,15,31
IECEx Certificate	IECEx SIR 13.0023X, IECEx SIM 14.0006
Code of Protection	Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex d I Mb, Ex e I Mb
Compliance Standards	IEC 60079-0,1,7,15,31
CSA Certificate	1211841
Code of Protection	Class I, Div 2 Groups B, C, D; Class II, Div 2 Groups E, F, G; Class III, Div 2; Type 4X: Oil Resistant II: Ex d IIC, Ex e II, Ex nR II
Compliance Standards	C22.2 No 0,0.4, 94, 174, CAN/CSA-E60079-0,1,7,15
EAC Certificate	C-GB.AA87.B.00487
KCC Certificate	13_GA4BO_0748X, 13_GA4BO_0749X, 13_GA4BO_0750X, 14_GA4BO_0251X
NEPSI Certificate	GYJ13.1140X , GYJ13.1282X
INMETRO Certificate	TÜV 12.0619X
CCOE / PESO (India) Certificate	P333688
RETIE Certificate	03866
Marine Approvals	LRS: 01/00172 (E3), DNV: TAE00000Y, ABS: 14-LD234401A-4-PDA, BV: 43180/A1BV
Ingress Protection Rating **	IP66, IP67 & IP68
Deluge Protection Compliance	DTS01 : 91
Cable Gland Material	Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium
Seal Material	CMP SOLO LSF Halogen Free Thermoset Elastomer
Cable Type	Unarmoured & Braided when terminated inside enclosure
Sealing Technique	CMP Unique Displacement Seal Concept
Sealing Area(s)	Cable Outer Sheath
Optional Accessories	Locknuts, Earth Tags, Serrated Washers, Entry Thread Seals, Shrouds,Ingress Discs
Optional Installation Tools	Spanners, Armour Former Tool

PRODUCT SELECTION TABLE

Cable Gland Size	Available Entry Threads ＇C＇ (Alternate Metric Thread Lengths Available)					Overall Cable Diameter ＇A＇		Across Flats ＇D＇	Across Corners ＇D＇	Protrusion Length ＇F＇	Combined Ordering Reference (*Brass Metric)			Shroud	Cable Gland Weight (kgs)
	Standard				Option	Overall Cable Diameter ＇A＇		Across Flats ＇D＇	Across Corners ＇D＇		Combined Ordering Reference (*Brass Metric)
	Metric	Thread Length (Metric) ＇E＇	NPT	Thread Length (NPT) ＇E＇	NPT	Min	Max	Max	Max		Size	Type	Ordering Suffix
16	M16	15.0	-	-	-	3.2	8.7	24.0	26.4	29.9	16	A2F	1RA	PVC04	0.06
20S16	M20	15.0	½"	19.9	¾"	3.2	8.7	24.0	26.4	26.0	20S16	A2F	1RA	PVC04	0.07
20S	M20	15.0	½"	19.9	¾"	6.1	11.7	24.0	26.4	26.0	20S	A2F	1RA	PVC04	0.06
20	M20	15.0	½"	19.9	¾"	6.5	14.0	27.0	29.7	27.7	20	A2F	1RA	PVC05	0.07
25	M25	15.0	¾"	20.2	1"	11.1	20.0	36.0	39.6	35.5	25	A2F	1RA	PVC09	0.13
32	M32	15.0	1"	25.0	1 ¼"	17.0	26.3	41.0	45.1	35.1	32	A2F	1RA	PVC10	0.15
40	M40	15.0	1 ¼"	25.6	1 ½"	23.5	32.2	50.0	55.0	35.1	40	A2F	1RA	PVC13	0.20
50S	M50	15.0	1 ½"	26.1	2"	31.0	38.2	55.0	60.5	33.0	50S	A2F	1RA	PVC15	0.26
50	M50	15.0	2"	26.9	2 ½"	35.6	44.0	60.0	66.0	37.3	50	A2F	1RA	PVC18	0.27
63S	M63	15.0	2"	26.9	2 ½"	41.5	49.9	70.5	77.6	33.5	63S	A2F	1RA	PVC21	0.43
63	M63	15.0	2 ½"	39.9	3"	47.2	55.9	75.0	82.5	36.2	63	A2F	1RA	PVC23	0.40
75S	M75	15.0	2 ½"	39.9	3"	54.0	61.9	84.0	92.4	34.1	75S	A2F	1RA	PVC24	0.52
75	M75	15.0	3"	41.5	3 ½"	61.1	67.9	84.0	92.4	40.9	75	A2F	1RA	PVC24	0.50
90	M90	24.0	3 ½"	42.8	4"	66.6	79.9	108.0	118.8	60.3	90	A2F	1RA	PVC31	1.60
100	M100	24.0	3 ½"	42.8	4"	76.0	91.0	123.0	135.3	57.2	100	A2F	1RA	-	1.78
115	M115	24.0	4"	44.0	5"	86.0	97.9	133.4	146.7	67.3	115	A2F	1RA	-	2.67
130	M130	24.0	5"	46.8	-	97.0	114.9	152.4	167.6	74.7	130	A2F	1RA	-	3.80
Dimensions are displayed in millimetres unless otherwise stated

CMP不銹鋼非鎧防爆格蘭（A2F-SS316系列）

TECHNICAL ILLUSTRATION
