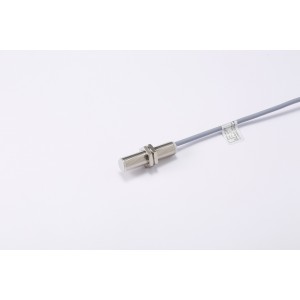

M12圆柱形电感式接近传感器，齐平8毫米长距离型金属接近开关
|
技术参数
|
|
|
安装方式
|
齐平
|
|
检测距离
|
8mm
|
|
LED显示
|
有
|
|
工作电压
|
10-30VDC
|
|
允许脉动电压
|
<10%
|
|
无负载电流
|
<10mA
|
|
负载电流
|
200mA
|
|
漏电流
|
<0.01mA
|
|
电压降
|
<1.5v
|
|
开关频率
|
2KHZ
|
|
响应时间
|
0.1ms
|
|
开关磁滞
|
<15%(Sr)
|
|
重复精度
|
<1.0%(Sr)
|
|
防护等级
|
IP67
|
|
工作温度
|
-25℃至+70℃
|
|
温度漂移
|
<10%(Sr)
|
|
过载电流保护
|
220mA
|
|
感应面材质
|
PBT
|
|
连接方式
|
2米防油PVC电缆
|
M12电感式近接传感器，检测距离2mm/4mm/6mm/8mm，齐平，标准型体长45mm，短型体长30mm，超短型体长22mm，出线式：
I1CF-M1202N-O3U2,I1CF-M1202N-C3U2,I1CF-M1202P-O3U2,
I1CF-M1202P-C3U2,I1CF-M1204N-O3U2,I1CF-M1204N-C3U2,
I1CF-M1204P-O3U2,I1CF-M1204P-C3U2,I1CF-M1206N-O3U2,
I1CF-M1206N-C3U2,I1CF-M1206P-O3U2,I1CF-M1206P-C3U2,
I1CF-M1208N-O3U2,I1CF-M1208N-C3U2,I1CF-M1208P-O3U2,
I1CF-M1208P-C3U2,I1CF-M1202N-O3S2,I1CF-M1202N-C3S2,
I1CF-M1202P-O3S2,I1CF-M1202P-C3S2,I1CF-M1204N-O3S2,
I1CF-M1204N-C3S2,I1CF-M1204P-O3S2,I1CF-M1204P-C3S2,
I1CF-M1206N-O3S2,I1CF-M1206N-C3S2,I1CF-M1206P-O3S2,
I1CF-M1206P-C3S2,I1CF-M1208N-O3S2,I1CF-M1208N-C3S2,
I1CF-M1208P-O3S2,I1CF-M1208P-C3S2,I1SF-M1202N-O3R2,
I1CF-M1202N-C3R2,I1CF-M1202P-O3R2,I1CF-M1202P-C3R2,
I1CF-M1204N-O3R2,I1CF-M1204N-C3R2,I1CF-M1204P-O3R2,
I1CF-M1204P-C3R2,I1CF-M1206N-O3R2,I1CF-M1206N-C3R2,
I1CF-M1206P-O3R2,I1CF-M1206P-C3R2,
