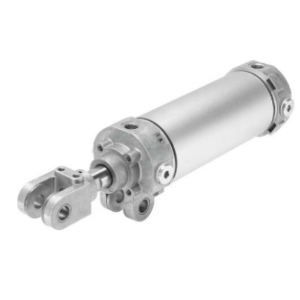

焊接过程中夹紧零件的理想选择：采用铰接结构的圆形气缸 DW。轴承盖上的双耳环。 • 在焊接过程中夹紧部件 • 双作用 • 通过前端盖上的万向节叉形端实现方便的安装 • 集成式节流阀 • 集成式终端缓冲 • 杆式压力密封件，用于防焊渣 • 亚洲汽车车身生产标准

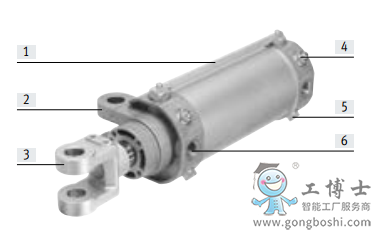

1] Different options for sensing the piston rod position:
– Via sensor rail (a Figure)
– Via mounting kit SMBR with proximity switch SMT-8M or SDBT-BSW
– Via external proximity switch using a switch lever
[2] Swivel bearing on the cylinder.
The fork gaps of the rod clevis and swivel bearing are identical
[3] Different rod clevis gaps can be selected
[4] Integrated flow control
[5] Integrated end-position cushioning
[6] Pneumatic connection, either:
– Via Rc or G thread
– Connection options on three sides
(e.g. by modifying the sensor rail)
注：更新导致更改恕不另行通知
